Bacterial and viral filter: PBF-100 family

Using our bacterial and viral filter prevents cross-contamination during lung function tests

Safety packages are available for different devices

Weekly at least 10 billion micro orgasms can be detected in a dry closed system spirometer after 1000 measurements. The most characteristics ones are as follows

:
Acinetobacter calcoaceticus (var Anitratus)   Acinetobacter calcoaceticus (var Lwoffi)
Achromobacter xylosoxidans   Alkaligenes denitrificans
Alkaligenes spp   Citrobacter freundii
Aerobic spore bearing bacillus   Coliform Gram negative bacilli
Enterobacter agglomerrans   Flavobacterium spp
Klebsiella pneumoniae   Pseudomonas fluorescens
Pseudomonas spp   Staphylococcus aureus
Staphylococcus albus   Streptococcus spp (haemolytic)
Xanthomonas spp   Penicillium spp



  • Types
  • Application
  • Adapters
  • Packing
  • Technical data

Code Device side connection Patient side connection To fit spirometers

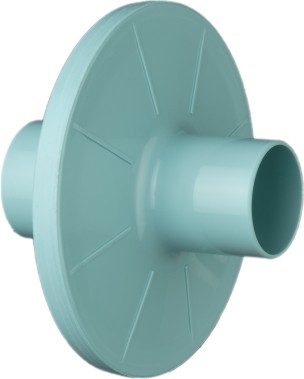

PBF-100-G-C

ISO-30 medical taper

Female: ID 30,9 mm

Basic taper 1:20

ISO-30 medical taper

Male: OD 30,2 mm

Basic taper 1:20

Piston

SensorMedics

PK Morgan

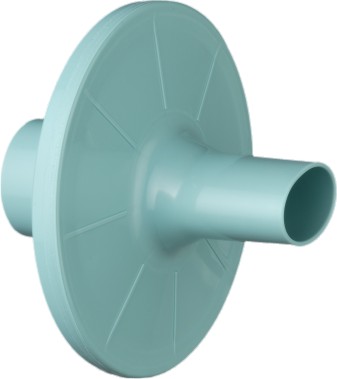

PBF-100-G-M

ISO-30 medical taper

Female: ID 30,9 mm

Basic taper 1:20

Elliptic, form of lips
PBF-100-B-C

Female: ID 29,9 mm

Basic taper 1:50

ISO-30 medical taper

Male: OD 30,2 mm

Basic taper 1:20

Jaeger

PBF-100-B-M

Female: ID 29,9 mm

Basic taper 1:50

Elliptic, form of lips
PBF-100-W-C

Male: OD 30,0 mm

Taper angle 2°

ISO-30 medical taper

Male: OD 30,2 mm

Basic taper 1:20

Micromedical

MIR

Vitalograph

PBF-100-W-M

Male: OD 30,0 mm

Taper angle 2°

Elliptic, form of lips


Application of the bacterial and viral filter is recommended for the following devices

Spirometer PDD-301/s
Rhinomanometer and spirometer PDD-301/r
Breath CO monitor and spirometer PDD-301/sco
Breath CO monitor and rhinomanometer PDD-301/rco
Whole body plethysmograph PDT-111/p
Diffusion capacity test PDT-111/d
Combo device: Audio + ECG + Spiro PDD-702

Of course our bacterial and viral filters can be used with other spirometers as well if the connection is proper

We manufacture professional adapters for numerous other spirometers as well.

We manufacture professional adapters for numerous other spirometers as well.

Please contact us with your special request.

Code Manufacturer Country Flow meter
PBMED-01 MedGraphics USA PreVent
PBFIM-01 FIM France Fleisch-tube
PBAG-01 Ganshorn Germany Ultrasonic
PBAG-02 Ganshorn Germany Shutter Type:1
PBAG-03 Ganshorn Germany Shutter Type:2
PBAG-04 Ganshorn Germany Variable orifice
PBAG-05 Ganshorn Germany Oscillometerr


Packaging Content Size Weight
Basic box 50 pcs W: 38 cm
L: 24 cm
H: 33 cm
2,2 kg
Collecting box 20 Basic boxes
1000 pcs
W: 80 cm
L: 120 cm
H: 66 cm
48 kg


Size D 100 mm * L 75 mm
Filtrating media

Filtrete by 3M

Electrostatically charged fiber

Resistance 60 Pa/l/s @ 12 l/s
Additional dead space 75 ml
Bacterium filtration efficiency

99,9999 %

Tested by Nelson Laboratories

Salt Lake City, USA

Virus filtration efficiency

99,9999 %

Tested by Nelson Laboratories
Salt Lake City, USA

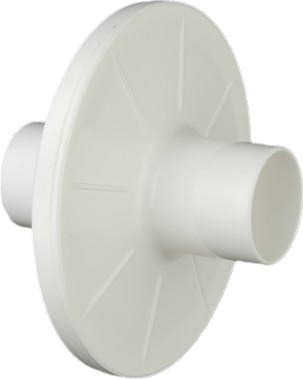

PBF-100-W-C
Conic patient side makes possible connection of different mouthpieces

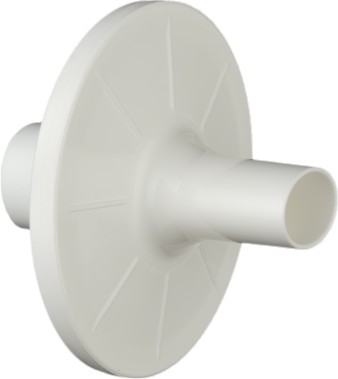

  PBF-100-W-M
Elliptic patient side for direct application

PMP-30
Bite-on mouthpiece


MPA-30
Basic mouthpiece
