Rhinomanometer and spirometer: PDD-301/sr

The device insures the measurement of nasal resistance and the basic pulmonary function testing.
It is inevitable in objective diagnose of rhinitis and in the ENT practice

The PinkFlow* flow-meter and the rhinomanometer fully complies with the specifications and requirements of the Standardization of Lung Function Testing ATS/ERS Task force (European Respiratory Journal 2005)

Connecting to a laptop PC provides full portability in battery mode as well

Software system overview

  • Measurement modes
  • Measured parameters
  • Accessories
  • Technical data
  • Active anterior nasal resistance
  • Active posterior nasal resistance
  • Forced ex- and inspiration
  • Static vital capacity
  • Maximal voluntary ventilation

Whole list of Pulmonary Function Tests’ parameters

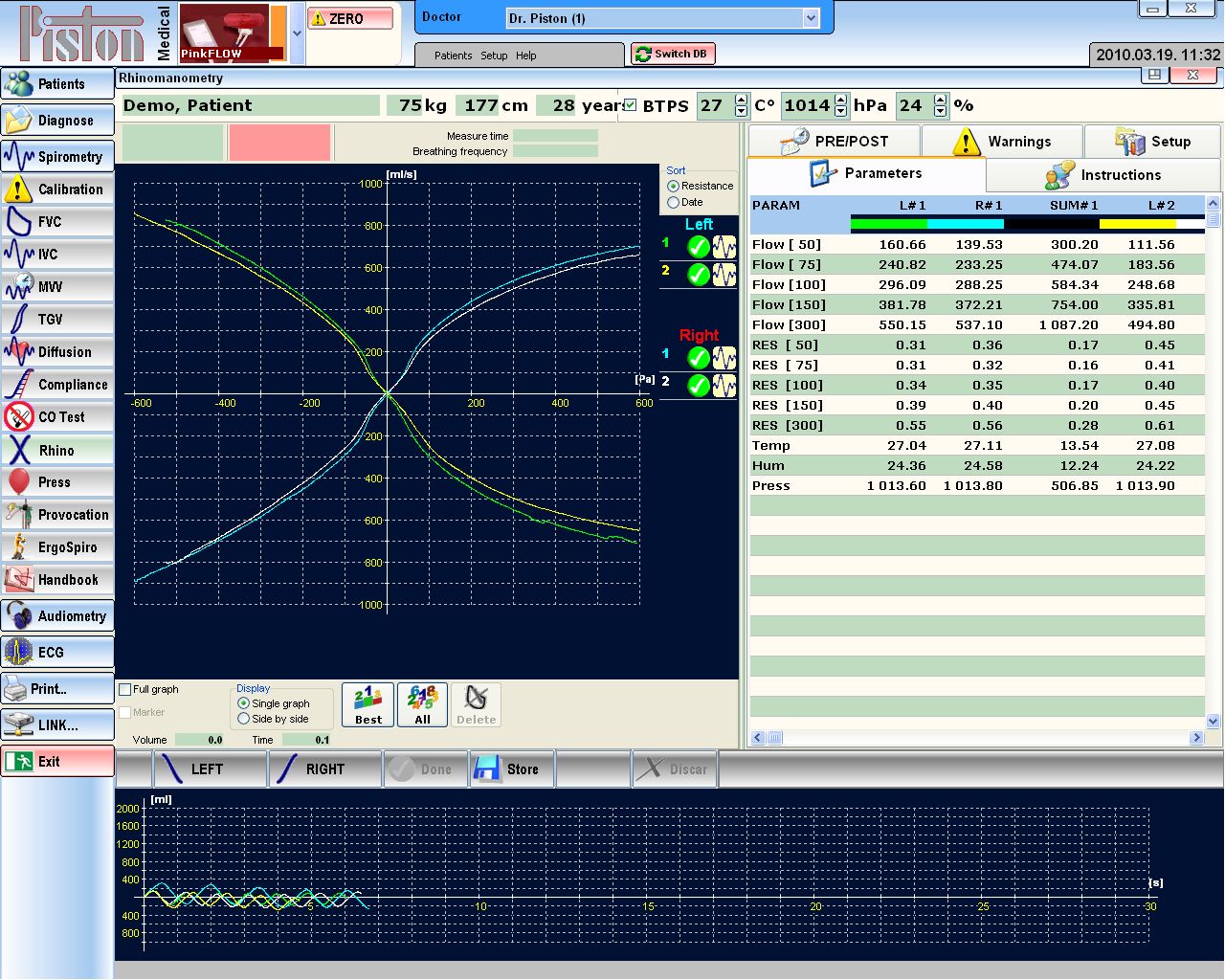

  Rhinomanometry
Flow [ 50] Flow speed at 50 Pa drive pressure
Flow [ 75] Flow speed at 75 Pa drive pressure
Flow [100] Flow speed at 100 Pa drive pressure
Flow [150] Flow speed at 150 Pa drive pressure
Flow [300] Flow speed at 300 Pa drive pressure
RES  [ 50] Resistance at 50 Pa drive pressure
RES  [ 75] Resistance at 75 Pa drive pressure
RES  [100] Resistance at 100 Pa drive pressure
RES  [150] Resistance at 150 Pa drive pressure
RES  [300] Resistance at 300 Pa drive pressure
  Forced ex and inspiration
FVC Forced Vital Capacity
FEV*0.5 Forced Expiratory Volume in 0.5 second
FEV*1.0 Forced Expiratory Volume in 1.0 second
FEV*0.5/IVC Ration of FEV*0.5 and IVC in %
FEV*0.5/FVC Ration of FEV*0.5 and FVC in %
FEV*1.0/IVC Ration of FEV*1.0 and IVC in %
FEV*1.0/FVC Ration of FEV*1.0 and FVC in %
PEF Peak Expiratory Flow
FEF*25-75% Forced mid-Expiratory Flow rate
FEF*75% Forced Expiratory Flow at 75% lung volume
FEF*50% Forced Expiratory Flow at 50% lung volume
FEF*25% Forced Expiratory Flow at 25% lung volume
FET Forced Expiratory Time
MTT Mean Transit Time
FIVC Forced Inspiratory Vital Capacity
FIV*0.5 Forced Inspiratory Volume in 0.5 sec
FIV*1.0 Forced Inspiratory Volume in 1.0 sec
PIF Peak Inspiratory Flow rate
FIF*25-75% Forced mid-Inspiratory Flow rate
  Static vital capacity
IVC Inspiratory Vital Capacity
IRV Inspiratory Reserve Volume
ERV Expiratory Reserve Volume
TV Tidal Volume
SVC Slow Vital Capacity
  Maximal Voluntary Ventilation
MVV Maximal Voluntary Ventilation
MVV*f Maximal Voluntary Ventilation Frequency


PinkFlow flow meter PPF-18
Bacterial and viral filter PBF-100
Mouth piece MPA-30
Nasal probe PNP-12, -14, -16
Nasal clip PNC-65
Facial mask PFM-115
Calibration syringe PCS-3000


Flow meter PinkFlow
Type PPF-18
Principle Symmetric and averaging Pitot tube
Flow range ±18 l/s
Accuracy ±2% or 50 ml, whichever is greater
Dead space 36 ml
Resistance 60 Pa/l/s @ 15 l/s
Accuracy of volume ±3 % or ±50 ml
Pressure range ±20 kPa
Accuracy of pressure ±2 % or ±50 Pa
Accuracy of resistance ±3 % or ±50 Pa/l/s
Size of PC interface Height: 45 mm
  Wide: 82 mm
  Long: 150 mm
Weight 220 g

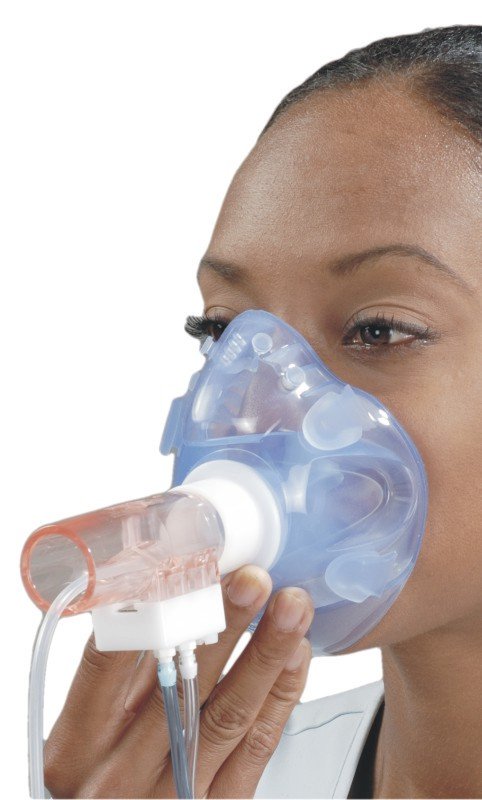

Patient circuit   Active anterior nasal resistance measurement

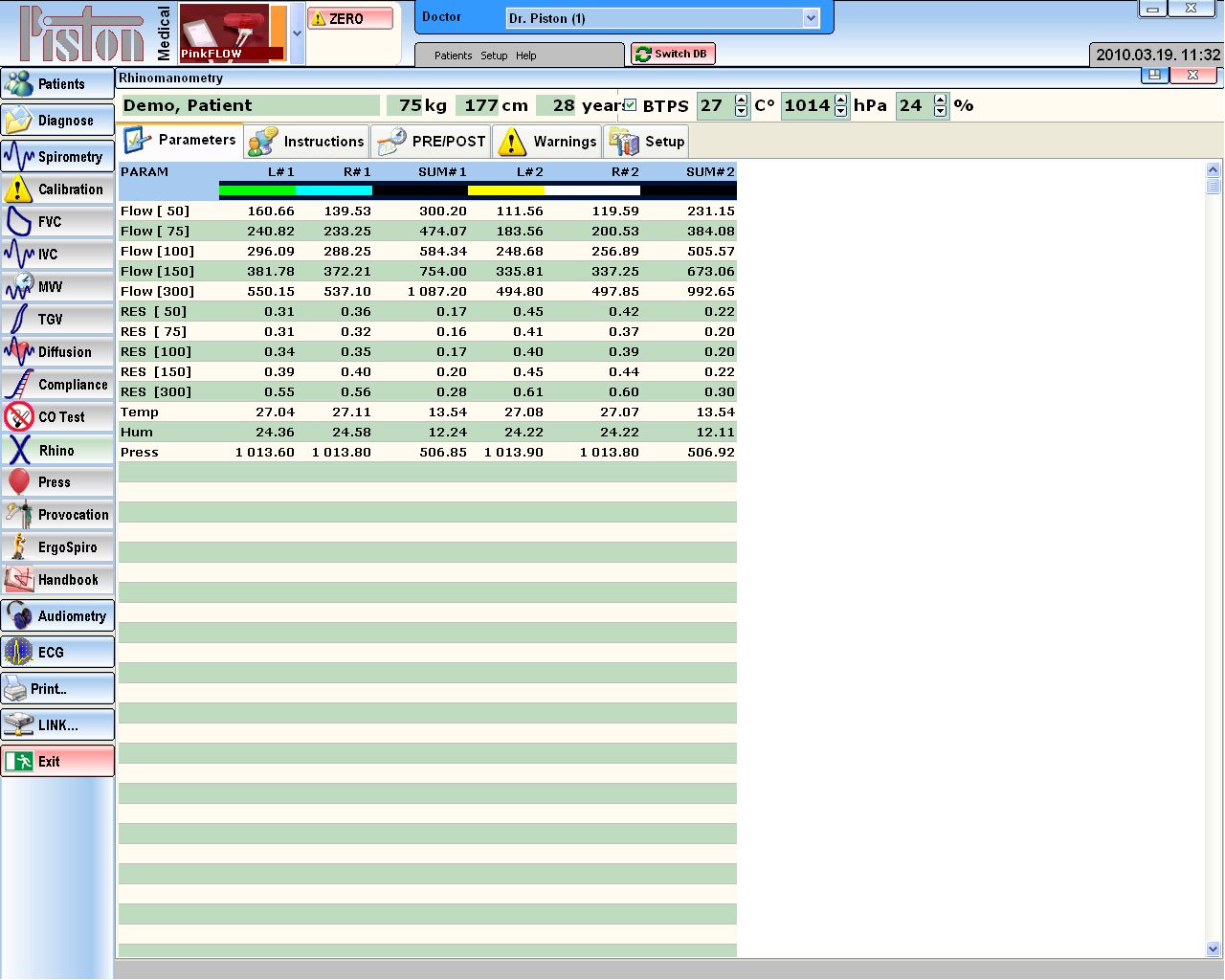

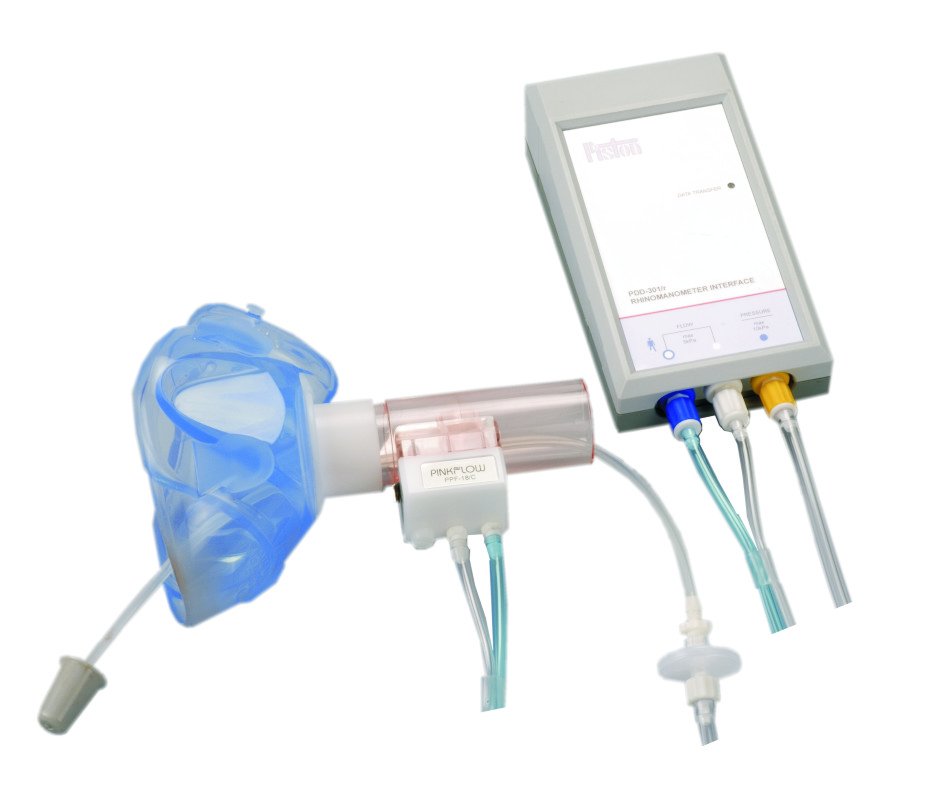

Device with the PinkFlow flow meter and the facial mask   Result table

    FVC measurement

    IVC measurement

    MVV measurement
